Backspace

An open, self-hosted communication platform — text, voice, video, and federation — that you own.

---

Backspace is a Discord-style chat platform you run on your own hardware. Spaces, channels, roles, voice and video, screen sharing, direct messages, friends, file sharing, and full-text search — plus server-to-server federation, so independent Backspace instances can talk to each other while each stays under its own control.

It is source-available: free to self-host, modify, and use — including inside a business — but not to resell as a hosted service. See License for the exact terms.

Project status Backspace is in active development and runs on live test instances, but has not had a tagged public release yet. Expect rough edges, and pin to a specific commit if you deploy it.

Screenshots

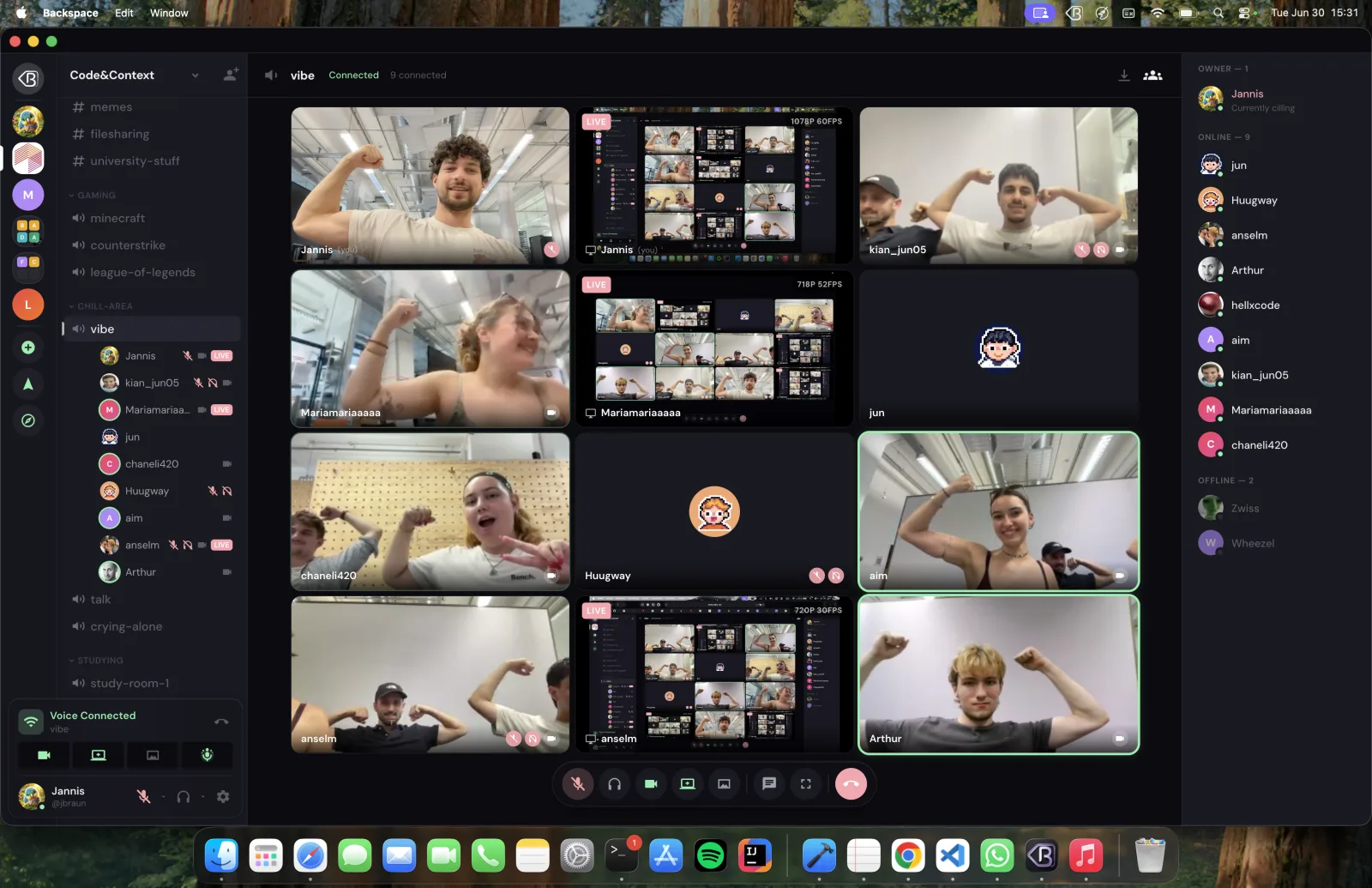

_{A voice channel in full swing — camera tiles alongside live screen-shares, each with its own resolution / frame-rate label.}

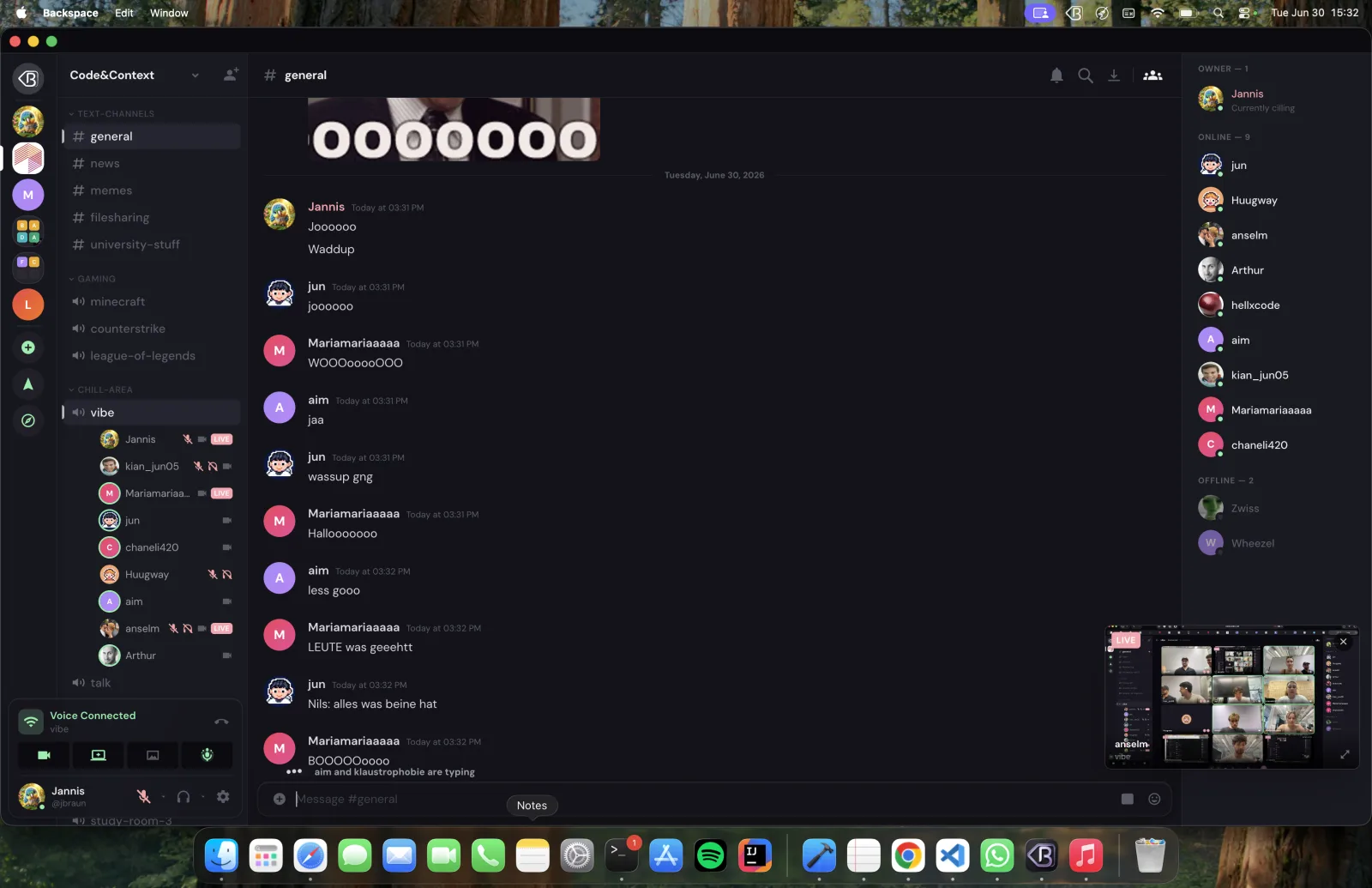

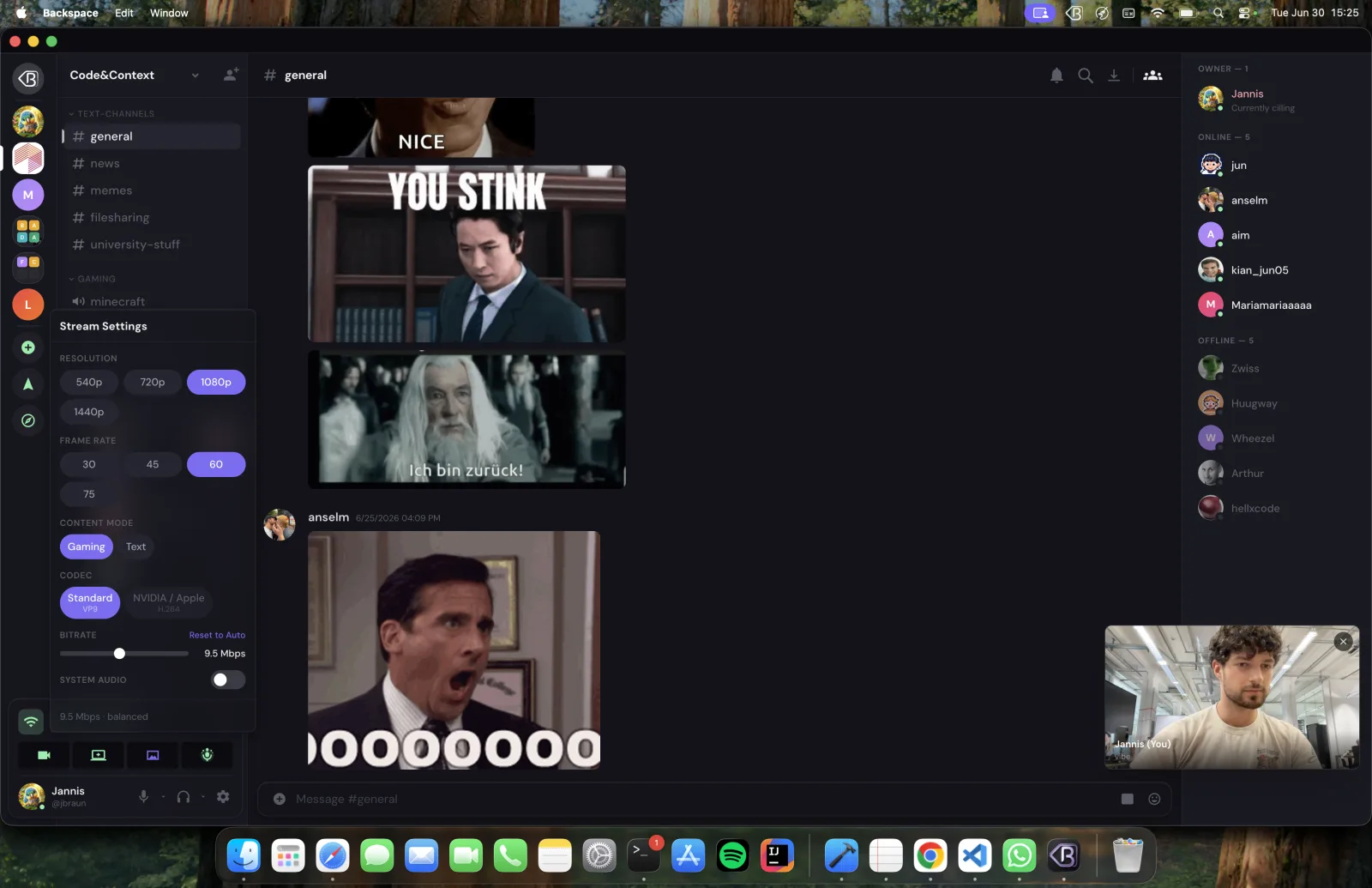

Text channels — Markdown, replies, reactions, and live typing indicators.	Screen-share controls — resolution, frame rate, codec, and bitrate, within admin-set bounds.

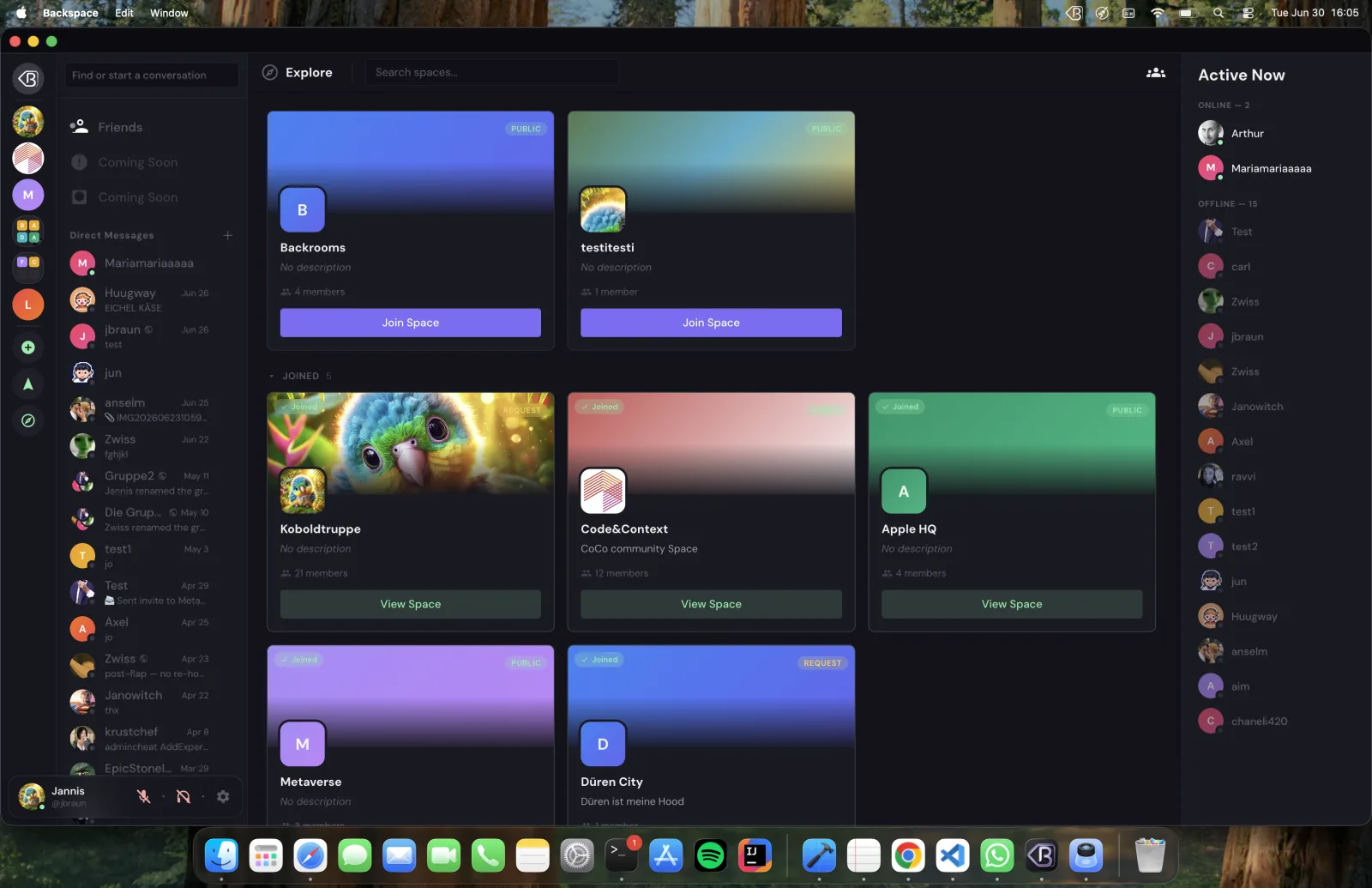

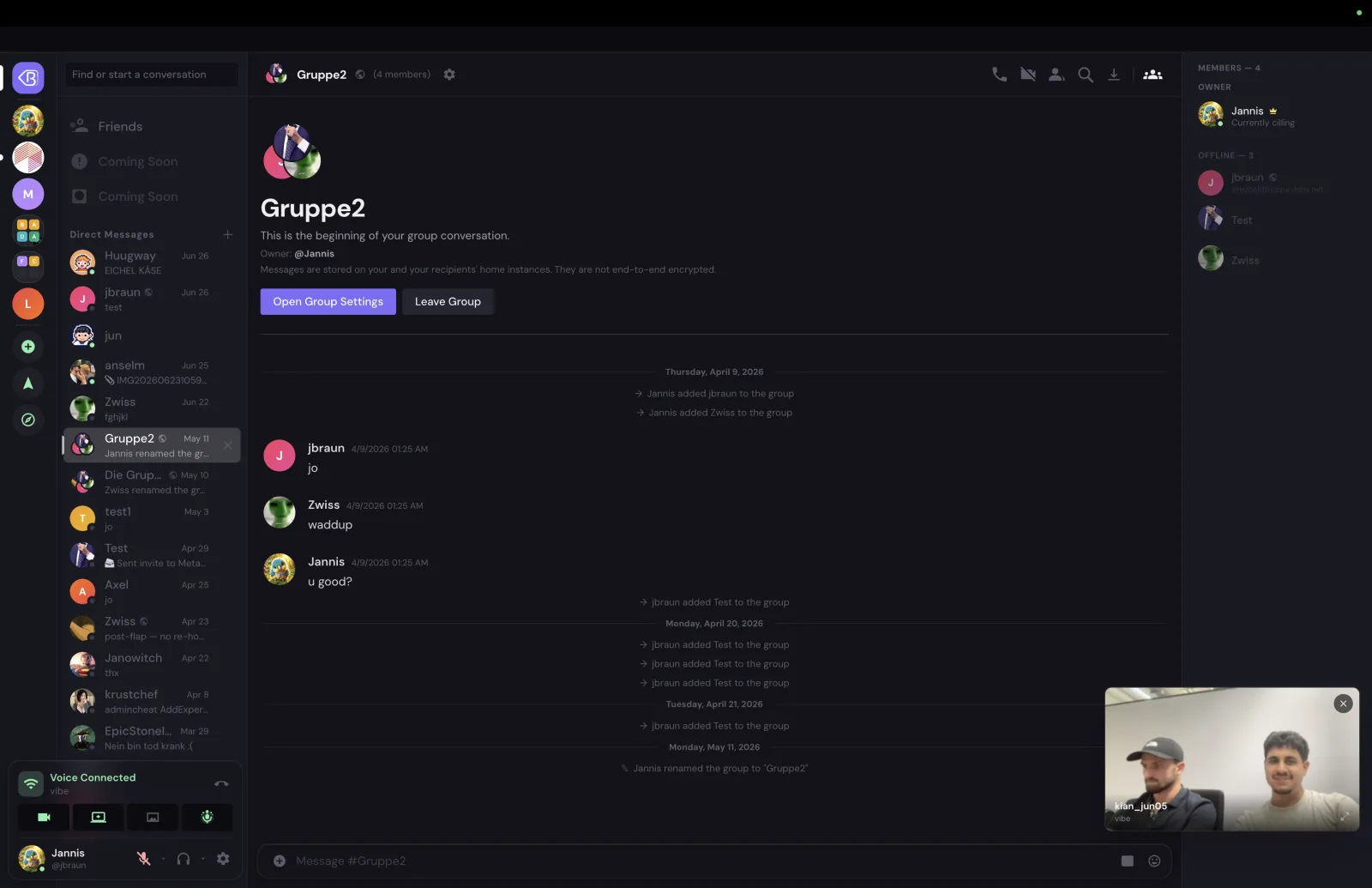

Spaces & discovery — browse public, request-to-join, and joined spaces.	Direct messages — 1-on-1 and group DMs, including members on peer instances.

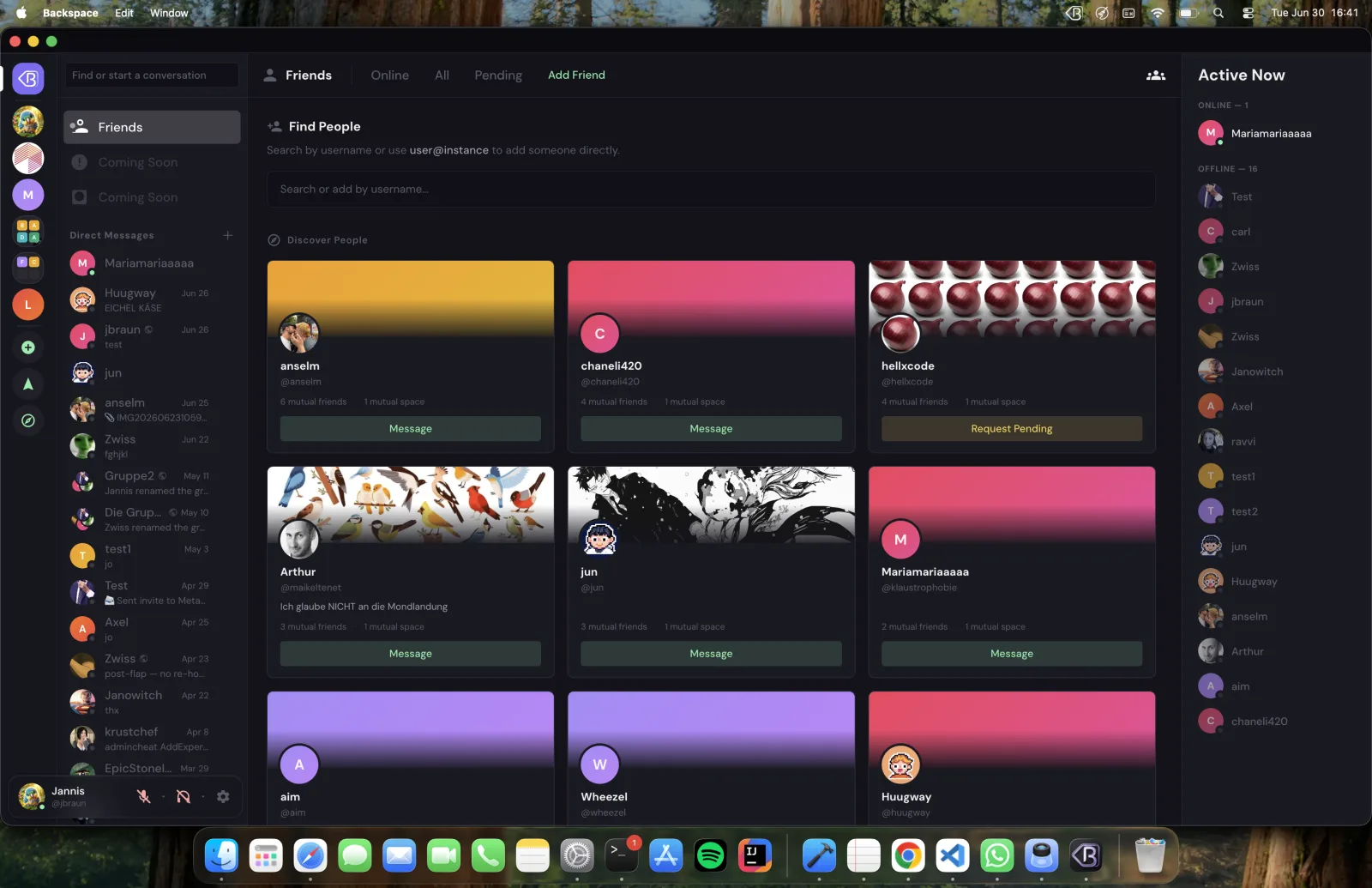

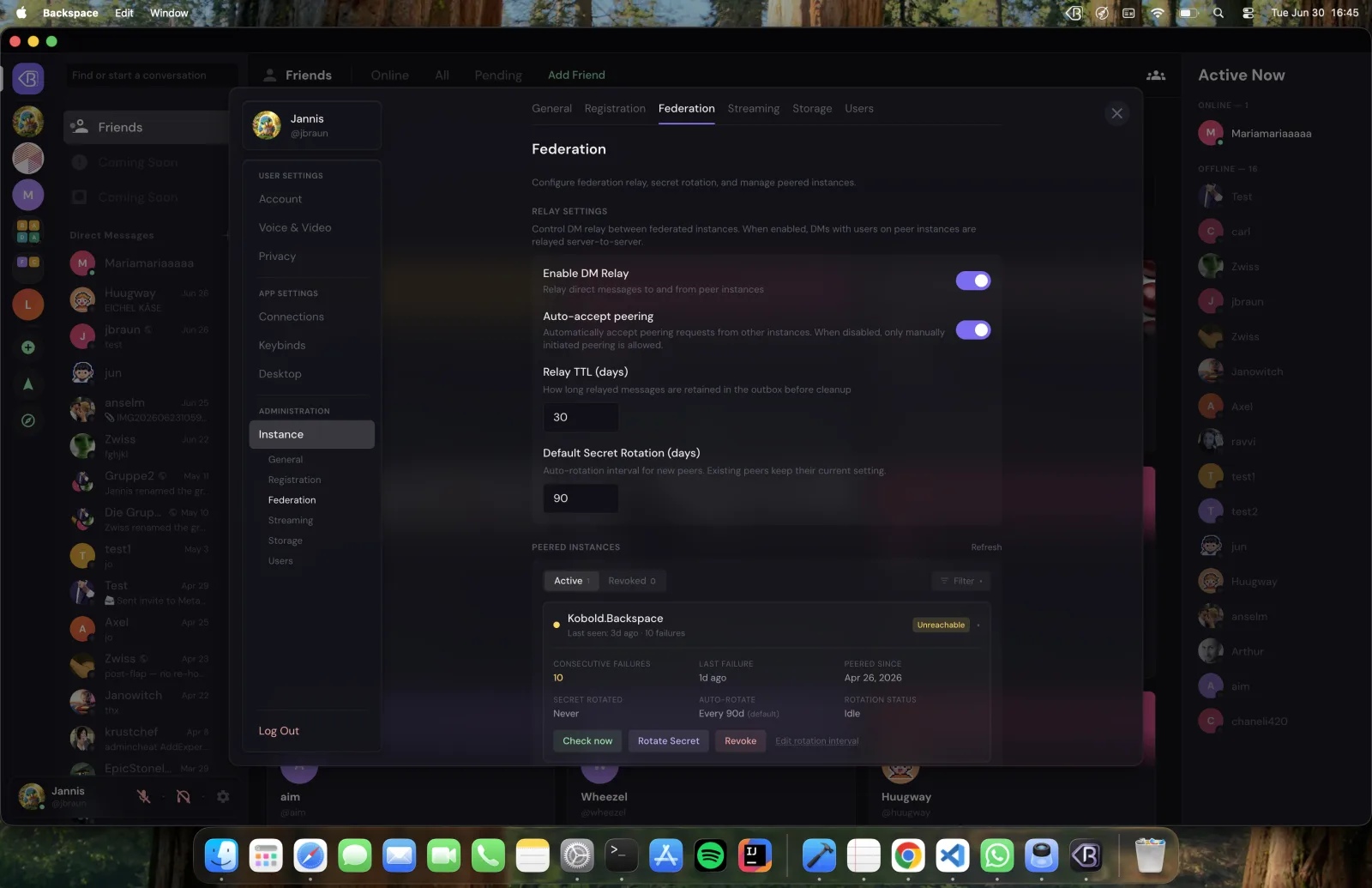

Friends & social — find people across instances with mutual friends and spaces.	Federation admin — manage peered instances, relay, and secret rotation.

→ See all screenshots

Features

Communication

• Real-time text channels over WebSocket
• @mention autocomplete with mention highlighting
• Voice and video channels via LiveKit, with RNNoise noise suppression (on by default)
• Screen sharing up to 4K / 120fps — VP9 by default, with an optional hardware-accelerated H.264 mode and a VP8 simulcast fallback; quality bounds are admin-configurable
• Picture-in-Picture for voice and video
• Direct messages — 1-on-1 and group DMs (up to 10 people)
• DM voice/video calls with ring / accept / reject
• Message reactions, replies, editing, and deletion
• Markdown formatting with syntax highlighting
• Typing indicators, read states, and presence
• Rich link embeds (YouTube, Vimeo, Spotify, and generic OpenGraph) with SSRF-protected scraping
• GIF search (Klipy)

Organization

• Spaces with channel categories
• Role-based permissions — bitwise RBAC with category- and channel-level overrides
• Customizable user sidebar layout, with personal color-coded folders that group whole spaces
• Space discovery (public, request-to-join, and private)
• Shareable invite codes

Social

• Friend requests and friendships
• User search and discovery
• Mutual friends and mutual spaces
• User profiles with banner, bio, and accent color
• Presence and rich activities (playing, listening, watching, streaming, custom)
• Privacy controls — toggle discoverability and activity-status sharing

Moderation

• Bans with reason and audit trail
• Voice restrictions (space-level mute/deafen, persisted)
• Member move and force-disconnect
• Join-request approval for gated spaces

Federation

• Multi-instance peering with HMAC-signed server-to-server requests
• Federated identity resolution (username@instance)
• Cross-instance DMs — messages, reactions, and membership relay
• Cross-instance friends and presence
• File replication with size validation
• Background workers for outbox delivery, file download, peer health, and cleanup

Platform

• File uploads with image thumbnails (via sharp)
• Full-text search with from:, has:, before:, and after: filters, plus jump-to-message
• Admin panel — instance settings, user management, registration controls, storage management, and federation/peering, plus granular streaming controls (a per-resolution × per-frame-rate bitrate matrix, min/max caps, quality-slider step, and an optional user-set-bitrate mode)
• Automatic SQLite backups (pre-migration, scheduled, and manual) with restore tooling
• Electron desktop app (Windows, macOS, Linux) with global keybinds (push-to-talk, mute, deafen) and activity detection
• Native desktop notifications and unread badge counts
• Installable PWA — service-worker caching and an offline message queue (messages send once you reconnect)
• Mobile-responsive web UI
• Account management — password change and account deletion with safeguards

Installation

The intended way to deploy Backspace is the interactive installer — it configures everything (.env, secrets, HTTPS, optional voice) and brings the stack up for you. Everything you need for a working instance is below.

Requirements

• A Linux host (VPS, VM, or home server) with Docker and Docker Compose.
• A domain name pointed at the host's public IP — Caddy uses it to obtain HTTPS certificates automatically.
• The ability to open the firewall ports in step 2.

1. Run the installer

git clone https://github.com/TheZwiss/backspace.git
cd backspace
./install.sh

The installer walks you through everything interactively:

• asks for your domain,
• generates a secure JWT_SECRET,
• optionally enables voice/video (sets up the bundled LiveKit server),
• writes .env (and livekit.yaml if voice is enabled),
• starts all services with Docker and configures automatic HTTPS via Caddy.

2. Open the firewall ports

Open these on the host — and, if it's behind a router, port-forward them to the host:

Port	Proto	When	Purpose
80	TCP	Always	HTTP — Caddy's automatic-HTTPS (ACME) challenge + redirect to HTTPS
443	TCP	Always	HTTPS — web app, REST API, WebSocket, and LiveKit signaling (proxied)
3478	UDP	If voice enabled	TURN — NAT traversal for WebRTC
7881	TCP	If voice enabled	WebRTC TCP fallback (clients that can't use UDP)
50000–60000	UDP	If voice enabled	WebRTC media (voice / video / screen-share streams)

Without voice, you only need 80 and 443. The voice ports are required only when you enable LiveKit. LiveKit's own signaling port (7880) stays internal — it's reverse-proxied through Caddy on 443, so you do not forward it.

Do this together with DNS, ideally before (or right after) running the installer. Caddy gets your HTTPS certificate from Let's Encrypt the first time the stack starts, which requires your domain to resolve to this host and ports 80/443 reachable from the internet. If they aren't ready yet, that's fine — Caddy keeps retrying, and HTTPS comes up automatically once DNS and the ports are in place.

3. Create your admin account

Open https://your-domain and register. The first account created becomes the instance admin — there is no default username or password.

If the page doesn't load over HTTPS, it's almost always DNS or ports 80/443 not being reachable from outside — check docker compose logs caddy for certificate errors. (The installer's health check confirms the app is up internally, not that the certificate was issued.)

Backups & restore

The app takes automatic SQLite snapshots (before every migration, on a schedule, and on demand via ./backup.sh). Restore from a snapshot with ./restore.sh. See docs/systems/deployment.md for the full backup/restore and image-pinning guide.

Manual setup (advanced, optional)

The installer above is the supported path. If you'd rather configure everything by hand, you can skip it and drive Docker Compose directly — but then DNS, .env, secrets, voice config, and the same firewall ports from step 2 are your responsibility:

git clone https://github.com/TheZwiss/backspace.git
cd backspace

cp .env.example .env
# Set DOMAIN, and generate a secret:
echo "JWT_SECRET=$(openssl rand -hex 32)" >> .env

docker compose up -d

The stack runs three services via Docker Compose:

Service	Role
backspace	The app (API + WebSocket + built web client) on internal port 3000
caddy	Reverse proxy with automatic HTTPS for your DOMAIN (ports 80/443)
livekit	Voice/video server — optional, enabled with COMPOSE_PROFILES=voice

Development

Requirements: Node.js 20+ and pnpm 8+.

pnpm install
cp .env.example .env          # set JWT_SECRET (openssl rand -hex 32)
pnpm dev                       # API server on :3005, Vite dev server on :5173

Run the halves separately if you prefer:

pnpm dev:server   # API + WebSocket on :3005
pnpm dev:web      # Vite dev server on :5173

Build everything for production (shared types → server → web):

pnpm build

In production the server serves the built web client directly.

Configuration

All configuration is via environment variables (see .env.example). The most important:

Variable	Required	Default	Description
DOMAIN	yes	—	Public domain name of your instance
JWT_SECRET	yes	—	Auth signing secret, min 32 chars (openssl rand -hex 32)
PORT	no	3000	App listen port (behind Caddy in Docker)
HOST	no	0.0.0.0	Bind address
REGISTRATION_OPEN	no	true	Set false to close signups after setup
MAX_UPLOAD_SIZE	no	104857600	Max upload size in bytes (100 MB)
LIVEKIT_URL / LIVEKIT_API_KEY / LIVEKIT_API_SECRET	no	—	Enable voice/video
COMPOSE_PROFILES	no	—	Set to voice to start the bundled LiveKit service

Voice & Video

Voice, video, and screen sharing require a LiveKit server. The Docker Compose file bundles one — enable it by setting these in .env:

COMPOSE_PROFILES=voice
LIVEKIT_URL=wss://your-domain
LIVEKIT_API_KEY=your-api-key
LIVEKIT_API_SECRET=your-api-secret

Enabling voice also requires opening the WebRTC ports (3478/UDP, 7881/TCP, 50000–60000/UDP) — see Open the firewall ports.

Without LiveKit configured, everything else — text, federation, DMs, uploads, search — works fully; only voice/video channels won't connect.

Federation

Backspace instances can peer with each other so users on different servers can become friends, DM, and call across instances, while each instance stays independently owned and operated. Peering is mutual and authenticated with HMAC-signed requests; identities are addressed as username@instance. Manage peers from the Connections panel in settings. The protocol is documented in docs/systems/federation.md and docs/systems/client-federation.md.

Desktop App

The Electron desktop app wraps the web client and adds a system tray, native notifications, global keybinds, and activity detection.

cd packages/desktop
pnpm build:ts    # compile TypeScript
pnpm dev         # run in development
pnpm build       # package for distribution

Cross-platform builds are produced for Windows, macOS, and Linux. See docs/systems/desktop.md.

Architecture

Backspace is a TypeScript monorepo managed with pnpm workspaces.

packages/
  shared/   — Shared types, permission bits, constants
  server/   — Fastify API + WebSocket server, Drizzle/SQLite, federation
  web/      — React 18 SPA (Vite, Tailwind, Zustand)
  desktop/  — Electron wrapper

Layer	Technology
Server	Node.js 20+, Fastify 4, TypeScript (strict)
Database	SQLite (better-sqlite3) + Drizzle ORM
Auth	JWT + bcrypt
Frontend	React 18, Vite 6, Tailwind CSS 3, Zustand 5
Voice/Video	LiveKit
Media	sharp (thumbnails), Cheerio (embeds)
Desktop	Electron 40
Deployment	Docker Compose + Caddy (auto-HTTPS)

Every subsystem has a dedicated specification under docs/systems/ — database schema, REST API, WebSocket protocol, federation, permissions, voice, the design system, and more. These are the reference for how Backspace works; start there if you want to understand or extend a subsystem.

Contributing

Contributions are welcome. Please read CONTRIBUTING.md first. Backspace is a single-owner project, so all contributors sign a Contributor License Agreement — a one-time comment on your pull request, handled automatically by a bot. The CLA assigns copyright in your contribution to the maintainer (Jannis Braun), who becomes its sole owner; in return you receive a license to reuse the specific code you wrote in your own other projects. If you're not comfortable assigning your contribution, please don't submit it.

Security

If you discover a security vulnerability, please do not open a public issue. Instead, report it privately to the maintainer via a GitHub security advisory on this repository, or by direct contact. We'll work with you on a fix and coordinated disclosure.

License

Backspace is licensed under the Elastic License 2.0.

In plain terms:

• ✅ You may self-host, run, and use it — including commercially and inside a business.
• ✅ You may read, modify, and redistribute the source.
• ❌ You may not provide Backspace to third parties as a hosted or managed service (i.e. you can't sell Backspace-as-a-service) without a separate commercial license from the maintainer.
• ❌ You may not remove or obscure the license and copyright notices.

This makes Backspace source-available, not OSI "open source" — the only practical difference is the hosted-service restriction above. If you want to offer Backspace as a commercial service, contact the maintainer (@TheZwiss) about a commercial license.

Bundled third-party components (the DM Sans font, etc.) retain their own licenses; see NOTICE.

"Backspace" and the Backspace logo are trademarks of Jannis Braun and are not covered by the code license.

Acknowledgements

Built on the shoulders of Fastify, Drizzle ORM, React, LiveKit, Tailwind CSS, Electron, and the broader open-source ecosystem. The interface uses the DM Sans font (SIL Open Font License 1.1).
