Backspace # Backspace **A self-hosted communication platform — text, voice, video, and federation — that you own.** [![License: AGPL-3.0](https://img.shields.io/badge/license-AGPL--3.0-3da639.svg)](LICENSE) [![TypeScript](https://img.shields.io/badge/TypeScript-strict-3178c6.svg)](https://www.typescriptlang.org/) [![Node.js](https://img.shields.io/badge/node-%E2%89%A520-339933.svg)](https://nodejs.org/) [![Version](https://img.shields.io/badge/version-1.0.0-16a34a.svg)](#project-status)
--- Backspace is a Discord-style chat platform you run on your own hardware. Spaces, channels, roles, voice and video, screen sharing, direct messages, friends, file sharing, and message search — plus **server-to-server federation**, so independent Backspace instances can talk to each other while each stays under its own control. It is **free and open source** under the **GNU AGPL-3.0**, and dual-licensed: a commercial license is available if the AGPL doesn't fit your use. See [License](#license) for the details. > **Project status** > Backspace 1.0 — stable, self-hostable, and actively developed. ## What makes Backspace different Self-hosted chat usually forces a trade-off: gaming-grade voice and video, *or* a polished Discord-style experience, *or* federation between independent servers — rarely all three, and rarely with the fine-grained media controls people expect. Backspace does all three at once: - **Voice & video with a real control surface.** Not just "it has screen share": choose resolution, frame rate, codec (VP9 or hardware H.264), and bitrate; set independent 0–200% volume for every person *and* every screen-share; RNNoise noise suppression; a live connection inspector (bitrate, codec, ping, packet loss, jitter); and a per-tile badge showing each stream's measured resolution/frame-rate. Screen sharing goes up to 4K/120fps within admin-set bounds. - **Federation, not a walled garden.** Run your own instance and peer it with others: cross-instance friends, DMs, calls, and presence — each server independently owned, requests HMAC-authenticated. - **A complete, polished platform — not a demo.** Role-based permissions with per-category and per-channel overrides, friends and group DMs, inline playable media, moderation with audit trails, search, a desktop app, and an installable mobile PWA — all in the warm, calm "Aether Drift" interface. You own the server, the data, and the network it federates into. ## Screenshots

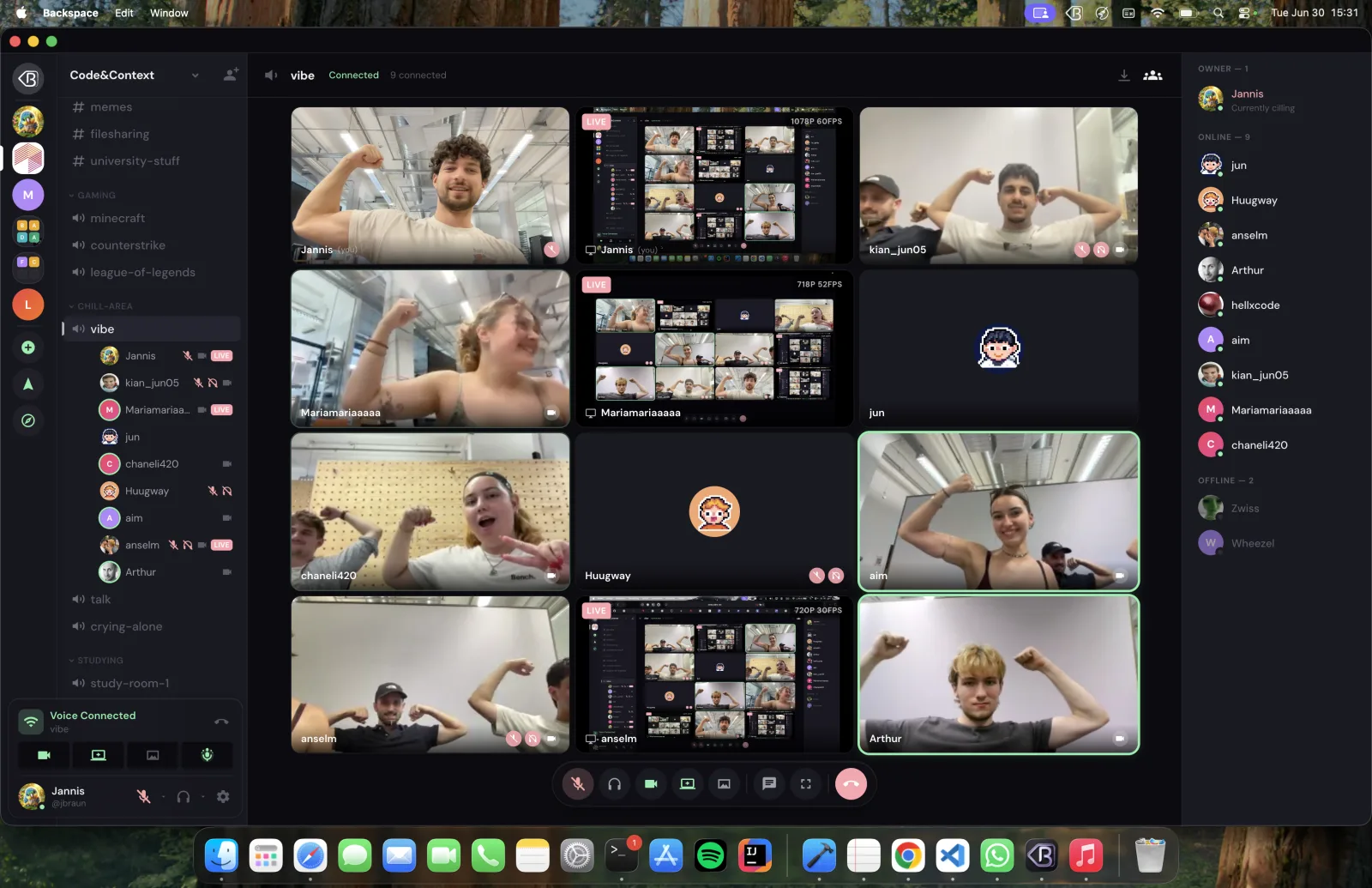

A voice channel with a grid of camera and screen-share tiles A voice channel in full swing — camera tiles alongside live screen-shares, each with its own resolution / frame-rate label.
A text channel with messages and a typing indicator

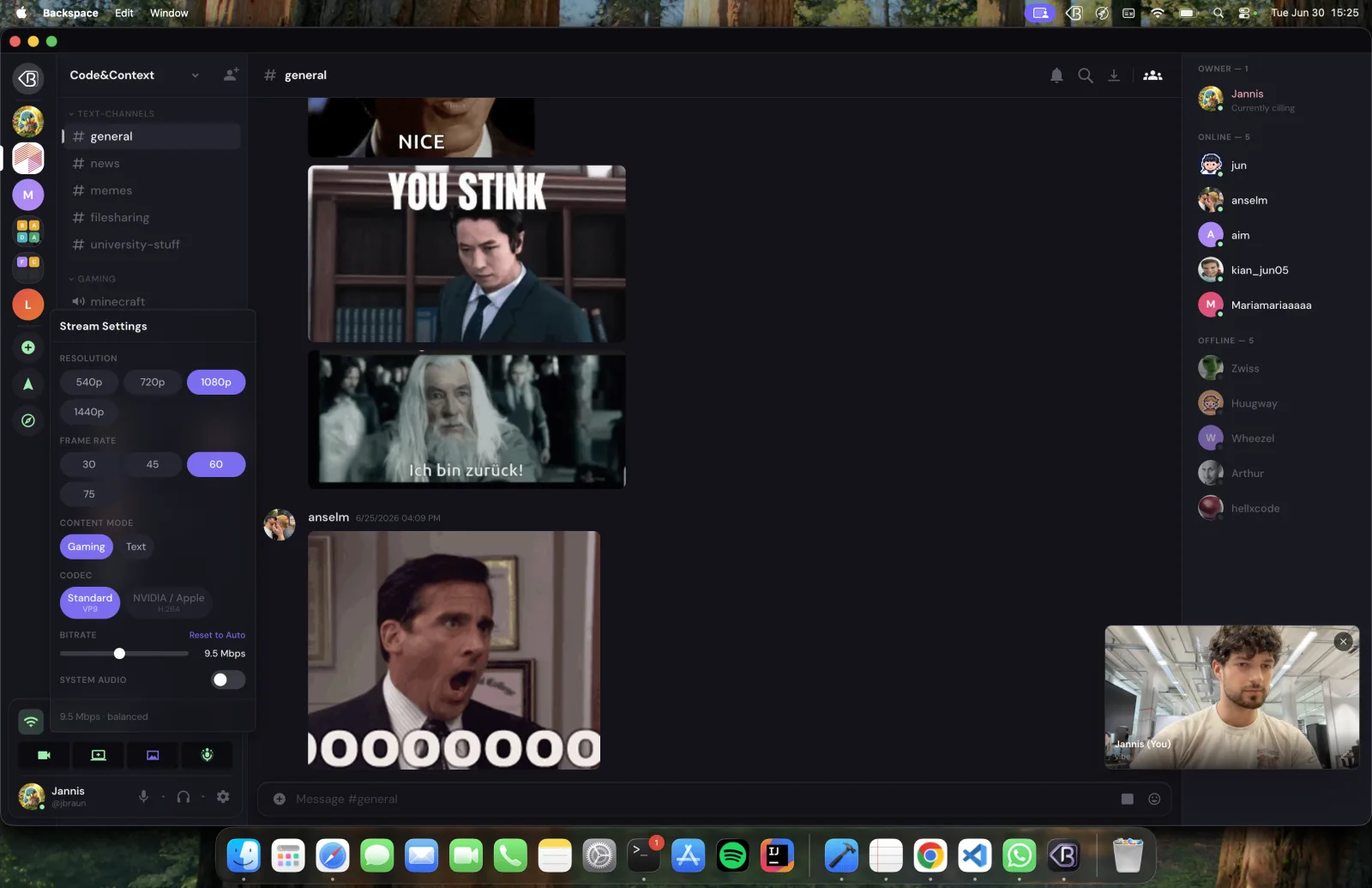

Text channels — Markdown, replies, reactions, and live typing indicators. 		The screen-share settings popover
Screen-share controls — resolution, frame rate, codec, and bitrate, within admin-set bounds.

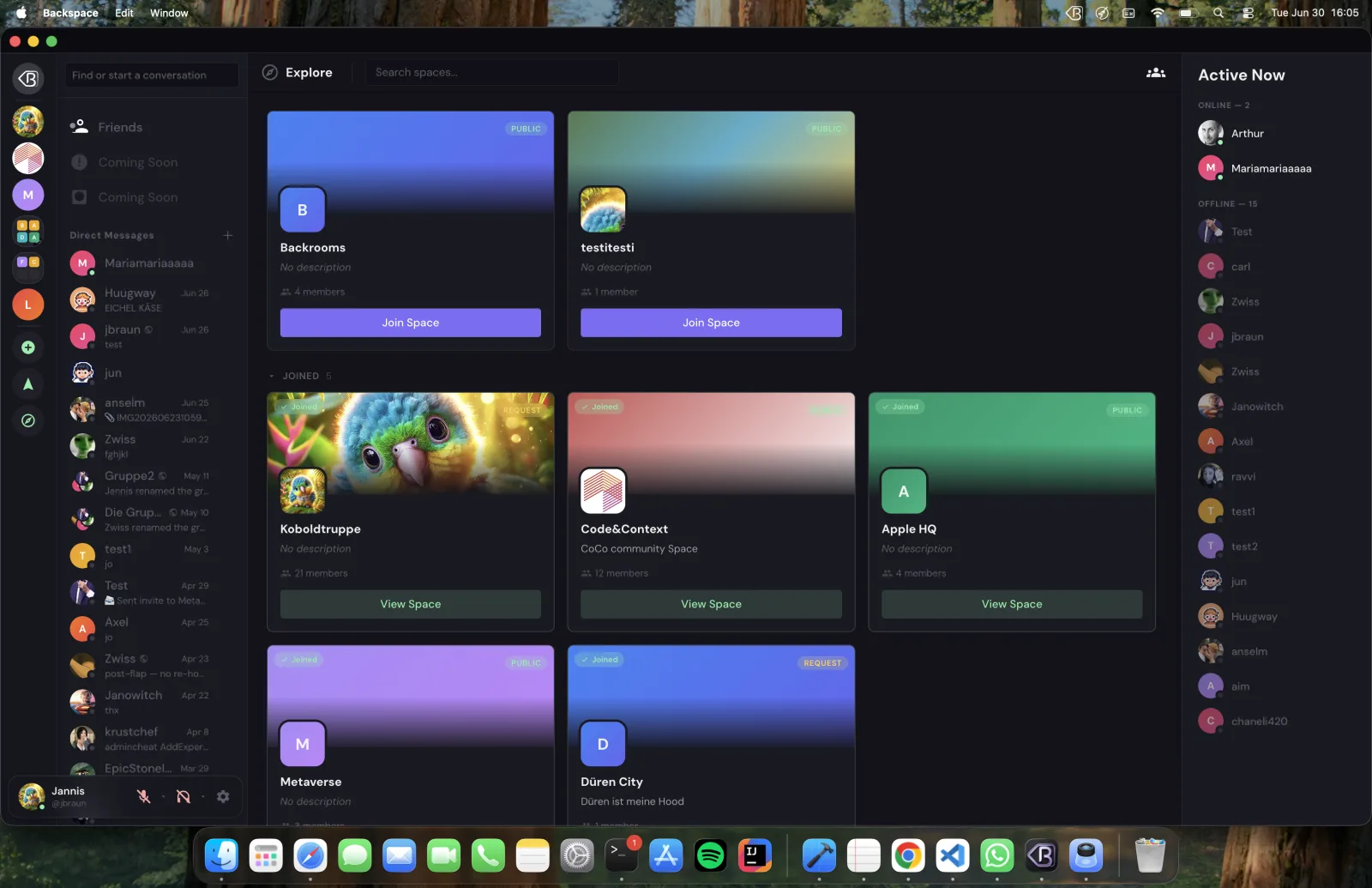

The space discovery / Explore view

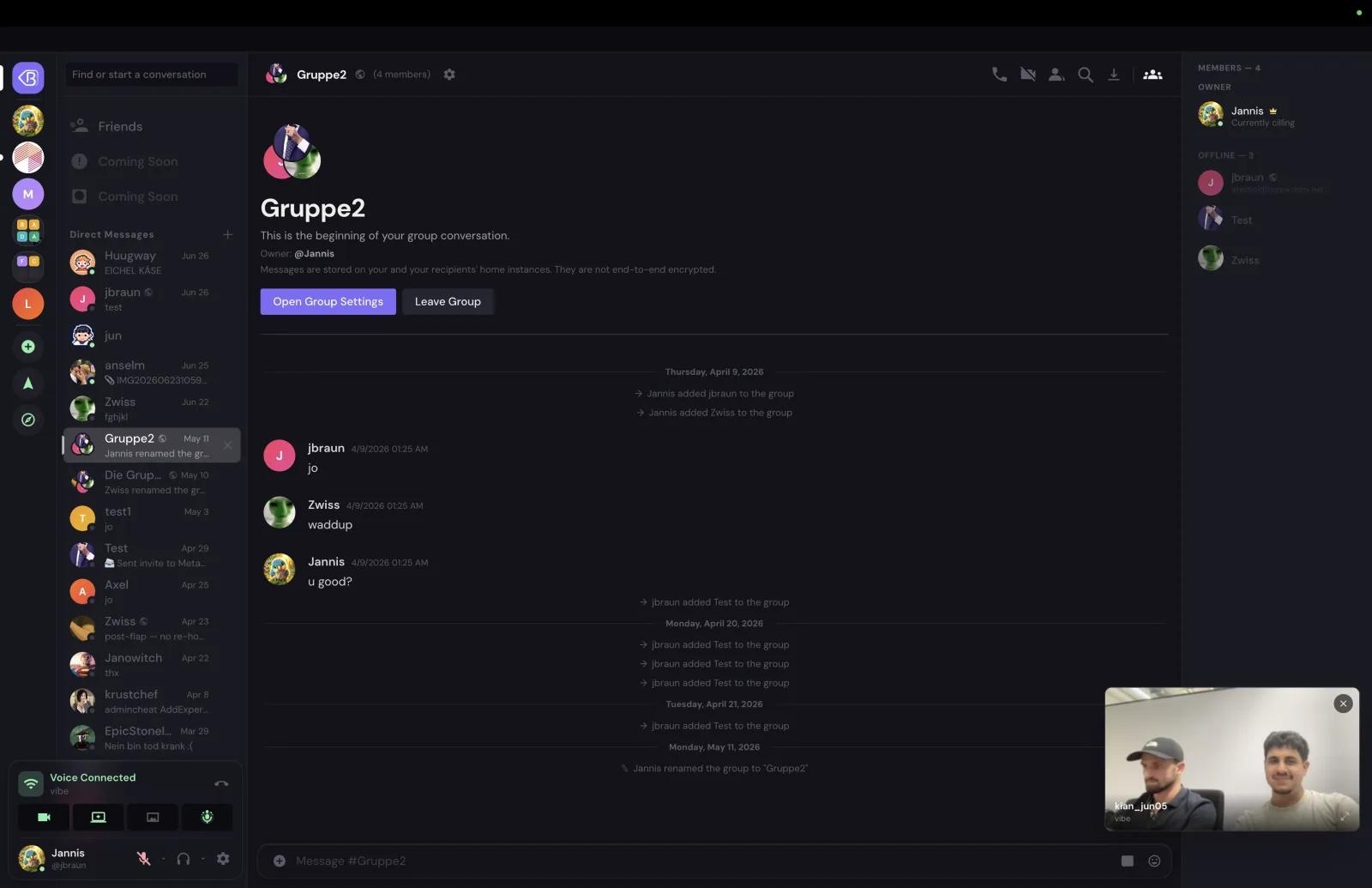

Spaces & discovery — browse public, request-to-join, and joined spaces. 		A federated group direct message
Direct messages — 1-on-1 and group DMs, including members on peer instances.
The find-people / user discovery view

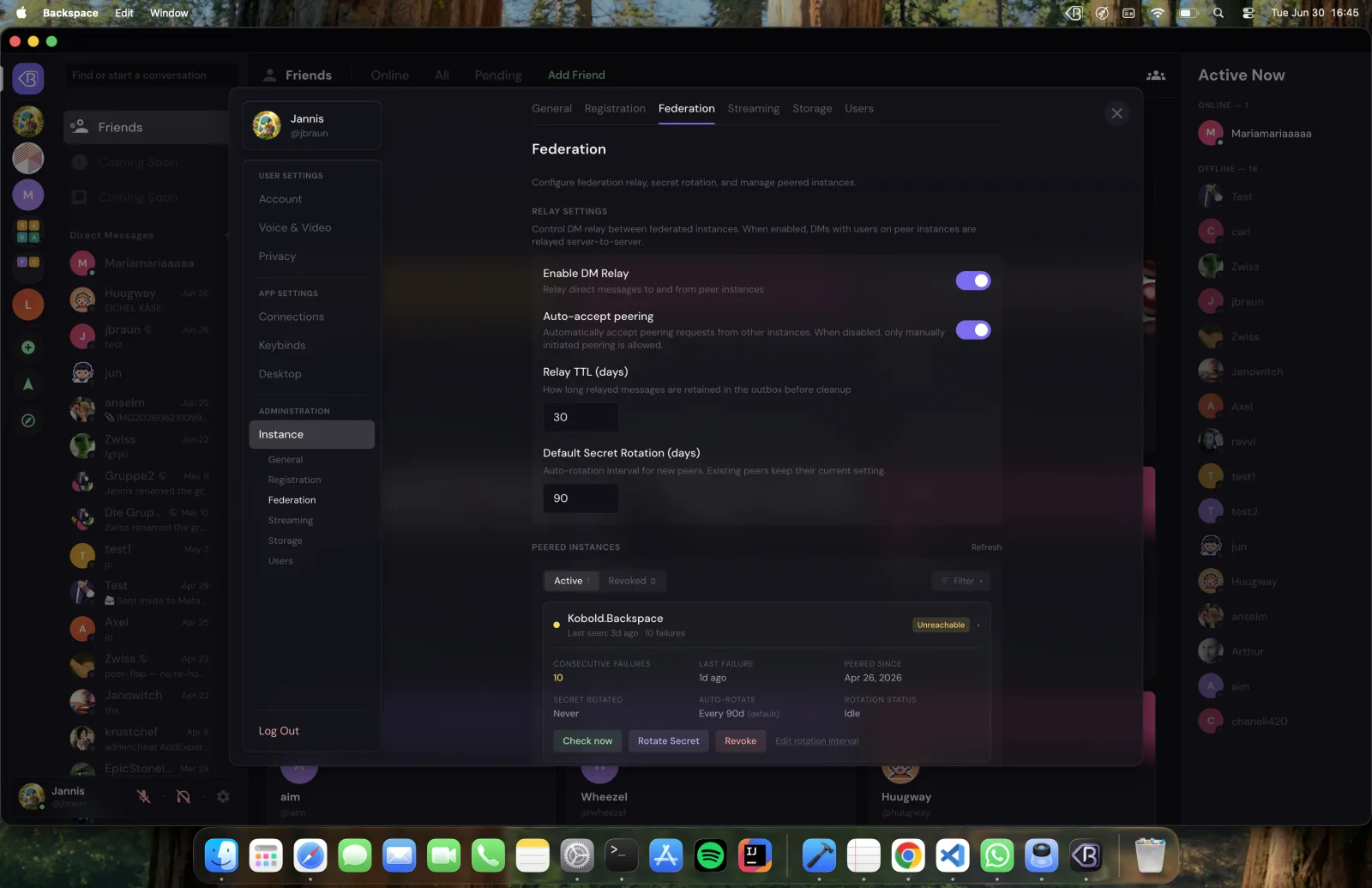

Friends & social — find people across instances with mutual friends and spaces. 		The federation admin panel showing peered instances
Federation admin — manage peered instances, relay, and secret rotation.
→ See all screenshots
## Features ### Communication - Real-time text channels over WebSocket, with `@mention` autocomplete and mention highlighting - Markdown formatting with syntax highlighting - Message reactions, replies, editing, deletion, and per-message mark-as-unread - Rich link embeds (YouTube, Vimeo, Spotify, and generic OpenGraph) with SSRF-protected scraping, plus GIF search (Klipy) - Typing indicators, unread badges, and presence - Direct messages — 1-on-1 and group DMs (up to 10 people), with voice/video calls (ring / accept / reject) **Voice, video & screen sharing** (via [LiveKit](https://livekit.io/)): - Screen sharing up to 4K / 120fps — VP9 by default, an optional hardware-accelerated H.264 mode, and a VP8 simulcast fallback - Per-stream quality controls — resolution, frame rate, codec, and bitrate, within admin-set bounds - Independent 0–200% volume for every participant *and* every screen-share - RNNoise noise suppression (on by default), plus echo-cancellation and auto-gain toggles and mic/speaker device selection - Live connection inspector — per-participant bitrate, codec, ping, packet loss, and jitter — plus a per-tile badge showing each stream's measured resolution/frame-rate - Screen-share viewer detection ("who's watching") and auto-ducking that lowers stream audio when someone speaks - Selective subscription — mute or stop watching any camera/stream to save bandwidth - Push-to-talk and fully customizable keybinds (including mouse buttons), in the browser and the desktop app - Picture-in-Picture for voice and video ### Organization - Spaces with channel categories - Role-based permissions — bitwise RBAC with category- and channel-level overrides - Customizable user sidebar layout, with personal color-coded folders that group whole spaces - Space discovery (public, request-to-join, and private) - Shareable invite codes ### Social - Friend requests and friendships - User search and discovery - Mutual friends and mutual spaces - User profiles with banner, bio, and accent color - Presence and rich activities (playing, listening, watching, streaming, custom) - Manual status — Online, Idle, or Do Not Disturb — with a custom status message - Privacy controls — toggle discoverability and activity-status sharing ### Moderation - Bans with reason and moderator attribution (who, why, and when) - Voice restrictions (space-level mute/deafen, persisted) - Member move and force-disconnect - Join-request approval for gated spaces ### Federation - Multi-instance peering with HMAC-signed server-to-server requests - Federated identity resolution (`username@instance`) - Cross-instance DMs — messages, reactions, and membership relay - Cross-instance friends and presence - File replication with size validation - Background workers for outbox delivery, file download, peer health, and cleanup ### Platform - File uploads with image thumbnails (via `sharp`), drag-and-drop and paste-to-upload, and in-app avatar/banner cropping - Message search with `from:`, `has:`, `before:`, and `after:` filters, plus jump-to-message - Admin panel — instance settings, user management, registration controls, storage management, and federation/peering, plus granular streaming controls (a per-resolution × per-frame-rate bitrate matrix, min/max caps, quality-slider step, and an optional user-set-bitrate mode) - Automatic SQLite backups (pre-migration, scheduled, and manual) with restore tooling - Electron desktop app (Windows, macOS, Linux) with global keybinds (push-to-talk, mute, deafen) and activity detection - Native desktop notifications and unread badge counts - Mobile-responsive web UI with a dedicated touch layout (bottom navigation, swipe gestures, full-screen views) - Installable PWA — add it to your phone's home screen to run it as a standalone app, with service-worker caching and an offline message queue (messages send once you reconnect) - Account management — password change and account deletion with safeguards ## Installation The intended way to deploy Backspace is the **interactive installer** — it configures everything (`.env`, secrets, HTTPS, optional voice) and brings the stack up for you. Everything you need for a working instance is below. ### Requirements - A **Linux host** (VPS, VM, or home server) with **Docker** and **Docker Compose**. - A **domain name** pointed at the host's public IP — Caddy uses it to obtain HTTPS certificates automatically. - The ability to open the firewall ports in step 2. ### 1. Run the installer ```bash git clone https://github.com/TheZwiss/backspace.git cd backspace ./install.sh ``` The installer walks you through everything interactively: - asks for your domain, - generates a secure `JWT_SECRET`, - optionally enables voice/video (sets up the bundled LiveKit server), - writes `.env` (and `livekit.yaml` if voice is enabled), - starts all services with Docker and configures automatic HTTPS via Caddy. ### 2. Open the firewall ports Open these on the host — and, if it's behind a router, port-forward them to the host: | Port | Proto | When | Purpose | |------|-------|------|---------| | `80` | TCP | **Always** | HTTP — Caddy's automatic-HTTPS (ACME) challenge + redirect to HTTPS | | `443` | TCP | **Always** | HTTPS — web app, REST API, WebSocket, and LiveKit signaling (proxied) | | `3478` | UDP | If voice enabled | TURN — NAT traversal for WebRTC | | `7881` | TCP | If voice enabled | WebRTC TCP fallback (clients that can't use UDP) | | `50000–60000` | UDP | If voice enabled | WebRTC media (voice / video / screen-share streams) | Without voice, you only need `80` and `443`. The voice ports are required only when you enable LiveKit. LiveKit's own signaling port (`7880`) stays internal — it's reverse-proxied through Caddy on `443`, so you do **not** forward it. > **Do this together with DNS, ideally before (or right after) running the > installer.** Caddy gets your HTTPS certificate from Let's Encrypt the first > time the stack starts, which requires your domain to resolve to this host > **and** ports `80`/`443` reachable from the internet. If they aren't ready > yet, that's fine — Caddy keeps retrying, and HTTPS comes up automatically once > DNS and the ports are in place. ### 3. Create your admin account Open `https://your-domain` and register. **The first account created becomes the instance admin** — there is no default username or password. If the page doesn't load over HTTPS, it's almost always DNS or ports `80`/`443` not being reachable from outside — check `docker compose logs caddy` for certificate errors. (The installer's health check confirms the app is up internally, not that the certificate was issued.) ### Backups & restore The app takes automatic SQLite snapshots (before every migration, on a schedule, and on demand via `./backup.sh`). Restore from a snapshot with `./restore.sh`. See [`docs/systems/deployment.md`](docs/systems/deployment.md) for the full backup/restore and image-pinning guide. ### Manual setup (advanced, optional) The installer above is the supported path. If you'd rather configure everything by hand, you can skip it and drive Docker Compose directly — but then DNS, `.env`, secrets, voice config, and the same firewall ports from step 2 are your responsibility: ```bash git clone https://github.com/TheZwiss/backspace.git cd backspace cp .env.example .env # Set DOMAIN, and generate a secret: echo "JWT_SECRET=$(openssl rand -hex 32)" >> .env docker compose up -d ``` The stack runs three services via Docker Compose: | Service | Role | |-------------|---------------------------------------------------| | `backspace` | The app (API + WebSocket + built web client) on internal port `3000` | | `caddy` | Reverse proxy with automatic HTTPS for your `DOMAIN` (ports `80`/`443`) | | `livekit` | Voice/video server — optional, enabled with `COMPOSE_PROFILES=voice` | ## Development Requirements: **Node.js 20+** and **pnpm 8+**. ```bash pnpm install cp .env.example .env # set JWT_SECRET (openssl rand -hex 32) pnpm dev # API server on :3005, Vite dev server on :5173 ``` Run the halves separately if you prefer: ```bash pnpm dev:server # API + WebSocket on :3005 pnpm dev:web # Vite dev server on :5173 ``` Build everything for production (shared types → server → web): ```bash pnpm build ``` In production the server serves the built web client directly. ## Configuration All configuration is via environment variables (see [`.env.example`](.env.example)). The most important: | Variable | Required | Default | Description | |----------------------|----------|-------------|-------------| | `DOMAIN` | yes | — | Public domain name of your instance | | `JWT_SECRET` | yes | — | Auth signing secret, **min 32 chars** (`openssl rand -hex 32`) | | `PORT` | no | `3000` | App listen port (behind Caddy in Docker) | | `HOST` | no | `0.0.0.0` | Bind address | | `REGISTRATION_OPEN` | no | `true` | Set `false` to close signups after setup | | `MAX_UPLOAD_SIZE` | no | `104857600` | Max upload size in bytes (100 MB) | | `LIVEKIT_URL` / `LIVEKIT_API_KEY` / `LIVEKIT_API_SECRET` | no | — | Enable voice/video | | `COMPOSE_PROFILES` | no | — | Set to `voice` to start the bundled LiveKit service | ## Voice & Video Voice, video, and screen sharing require a [LiveKit](https://livekit.io/) server. The Docker Compose file bundles one — enable it by setting these in `.env`: ```bash COMPOSE_PROFILES=voice LIVEKIT_URL=wss://your-domain LIVEKIT_API_KEY=your-api-key LIVEKIT_API_SECRET=your-api-secret ``` Enabling voice also requires opening the WebRTC ports (`3478/UDP`, `7881/TCP`, `50000–60000/UDP`) — see [Open the firewall ports](#2-open-the-firewall-ports). Without LiveKit configured, everything else — text, federation, DMs, uploads, search — works fully; only voice/video channels won't connect. ## Federation Backspace instances can peer with each other so users on different servers can become friends, DM, and call across instances, while each instance stays independently owned and operated. Peering is mutual and authenticated with HMAC-signed requests; identities are addressed as `username@instance`. Manage peers from the **Connections** panel in settings. The protocol is documented in [`docs/systems/federation.md`](docs/systems/federation.md) and [`docs/systems/client-federation.md`](docs/systems/client-federation.md). ## Desktop App The Electron desktop app wraps the web client and adds a system tray, native notifications, global keybinds, and activity detection. ```bash cd packages/desktop pnpm build:ts # compile TypeScript pnpm dev # run in development pnpm build # package for distribution ``` Cross-platform builds are produced for Windows, macOS, and Linux. See [`docs/systems/desktop.md`](docs/systems/desktop.md). ## Mobile Backspace works on mobile today — just open your instance in a phone browser. The UI has a dedicated touch layout (bottom navigation, swipe gestures, and full-screen views), and because it ships as an installable **PWA** you can use your browser's **Add to Home Screen** to install it as a standalone app: its own icon, no browser chrome, and an offline message queue that flushes when you reconnect. Native **iOS and Android app-store apps are planned** — once the project gains traction and the funding for the developer-program licenses is secured. Until then, the installable PWA is the supported way to run Backspace on a phone. ## Architecture Backspace is a TypeScript monorepo managed with pnpm workspaces. ``` packages/ shared/ — Shared types, permission bits, constants server/ — Fastify API + WebSocket server, Drizzle/SQLite, federation web/ — React 18 SPA (Vite, Tailwind, Zustand) desktop/ — Electron wrapper ``` | Layer | Technology | |--------------|------------| | Server | Node.js 20+, Fastify 4, TypeScript (strict) | | Database | SQLite (better-sqlite3) + Drizzle ORM | | Auth | JWT + bcrypt | | Frontend | React 18, Vite 6, Tailwind CSS 3, Zustand 5 | | Voice/Video | LiveKit | | Media | sharp (thumbnails), Cheerio (embeds) | | Desktop | Electron 40 | | Deployment | Docker Compose + Caddy (auto-HTTPS) | Every subsystem has a dedicated specification under [`docs/systems/`](docs/systems/) — database schema, REST API, WebSocket protocol, federation, permissions, voice, the design system, and more. **These are the reference for how Backspace works**; start there if you want to understand or extend a subsystem. ## Contributing Contributions are welcome. Please read [`CONTRIBUTING.md`](CONTRIBUTING.md) first. Backspace is a single-owner project, so all contributors sign a [Contributor License Agreement](CLA.md) — a one-time comment on your pull request, handled automatically by a bot. **You keep the copyright to your contribution** and grant the maintainer (Jannis Braun) an exclusive license to it — which is what lets Backspace be offered under both the AGPL and a commercial license. You also receive a perpetual license to reuse the specific code you wrote in your own other projects. ## Security If you discover a security vulnerability, please **do not** open a public issue. Report it privately via a GitHub security advisory on this repository — see [`SECURITY.md`](SECURITY.md). We'll work with you on a fix and coordinated disclosure. ## License Backspace is **free and open source software**, licensed under the **[GNU Affero General Public License v3.0](LICENSE)** (`AGPL-3.0-only`). In plain terms: - ✅ Self-host, run, study, and modify it — including commercially and inside a business. - ✅ Redistribute it and your changes under the same AGPL-3.0 license. - ⚠️ If you run a **modified** version as a network service, you must offer your users its complete corresponding source (AGPL § 13). Backspace makes this easy — set `BACKSPACE_SOURCE_URL` to your fork so the in-app "Source code" link points at what you actually run. - ⚠️ Preserve the copyright and license notices. **Commercial license.** If the AGPL doesn't fit — embedding Backspace in a closed-source product, offering it as a managed service without publishing your modifications, or an organization that can't use AGPL software — a separate commercial license is available on request. See [`LICENSE-COMMERCIAL.md`](LICENSE-COMMERCIAL.md). > **Our open-source commitment.** Every released version of Backspace is, and > will remain, available under the AGPL-3.0. The Contributor License Agreement > exists to enable a commercial license and optional enterprise add-ons — **not** > to take the open-source edition private. If this project is ever abandoned, or > the open-source edition is relicensed under non-free terms, the community stays > free to fork the last AGPL release. Copyright © 2026 Jannis Braun. Contributions are made under the [Contributor License Agreement](CLA.md): you keep your copyright and grant the maintainer an exclusive license, which is what lets Backspace be offered under both the AGPL and a commercial license. *Relicensing note: as of 2026-07-01, Backspace moved from the Elastic License 2.0 to AGPL-3.0-only, authorized by the sole copyright holder; releases tagged before that date remain under the Elastic License 2.0.* "Backspace", the Backspace logo, and app icons are trademarks of Jannis Braun and are not licensed under either the AGPL or the commercial license. Bundled third-party components retain their own licenses; see [`NOTICE`](NOTICE). ## Acknowledgements Built on the shoulders of [Fastify](https://fastify.dev/), [Drizzle ORM](https://orm.drizzle.team/), [React](https://react.dev/), [LiveKit](https://livekit.io/), [Tailwind CSS](https://tailwindcss.com/), [Electron](https://www.electronjs.org/), and the broader open-source ecosystem. The interface uses the [DM Sans](https://github.com/googlefonts/dm-fonts) font (SIL Open Font License 1.1).
